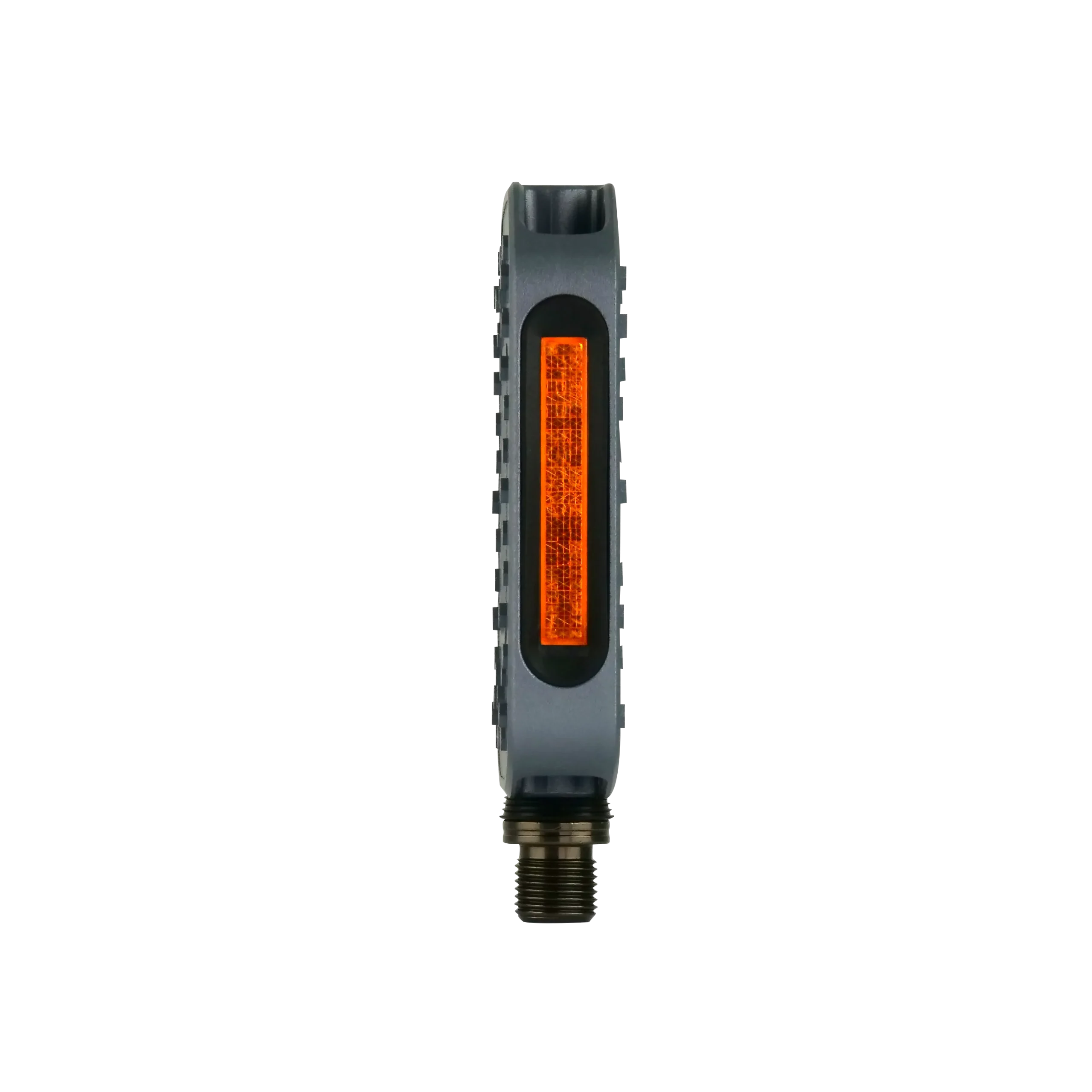

M.2 View CNC- Platform pedal

Product description – M.2 View CNC platform pedal

An outstanding feature of the M.2 View CNC is the adapted design of the tread surface: instead of the conventional 3M grip tape, numerous CNC-milled hexagonal pins at different heights ensure excellent grip and a secure footing while riding. This special surface structure therefore contributes to the overall safety of the rider.
The high-quality, conical axle and bearing units of the M.2 View CNC were specially developed for the M-Line series and offer a robustness that is in no way inferior to that of MTB axles. The pedal is available in different color variants so that cyclists can customize their bike and express their personal style.

Technical data – M.2 View CNC platform pedal

• Pedal type : Platform bicycle pedal
• Pedal body : Aluminum, AL-6061-T6
• Color, Anodized aluminium : gold, iron grey, black
• Tread surface : Hexagonal pins, CNC-milled on both sides
• Pedal axle : 9/16 inch thread, chromoly steel
• Pedal bearing : Industrial ball bearings, plain bearings
• Weight : approx. 435 g / pair
• Dimensions (W x H x D) : Approx. 102 x 90 x 19 mm
• Rider weight : max. 150 kg
• StVZO compliant

Tech. Data

• Pedal type : Platform bicycle pedal
• Pedal body : Aluminum, AL-6061-T6
• Color, Anodized aluminium : gold, iron grey, black
• Tread surface : Hexagonal pins, CNC-milled on both sides
• Pedal axle : 9/16 inch thread, chromoly steel
• Pedal bearing : Industrial ball bearings, plain bearings
• Weight : approx. 435 g / pair
• Dimensions (W x H x D) : Approx. 102 x 90 x 19 mm
• Rider weight : max. 150 kg
• StVZO compliant

Assembly instructions

The assembly instructions for the M.2 View pedal are currently still in progress. Until it is available, the instructions for the M.1 View Pedalscan be used. Both models are based on the same technical requirements and can be installed identically.
