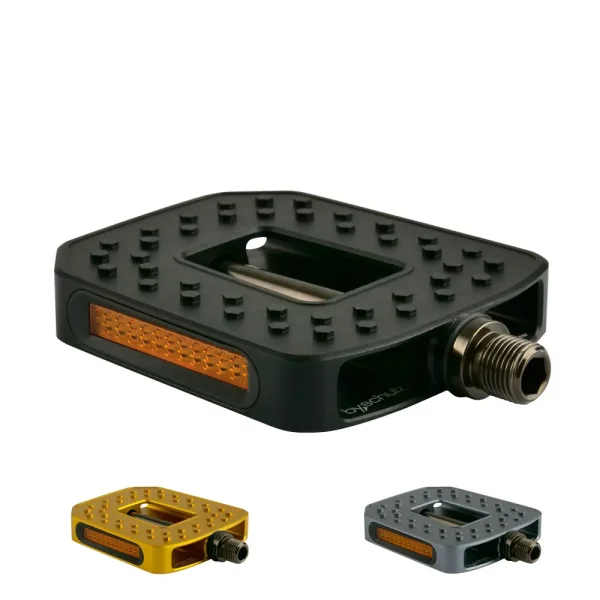

M.2 View CNC platform pedal

M.2 View CNC platform pedal
M.2 View CNC platform pedal - Image 2
M.2 View CNC platform pedal - Image 3
M.2 View CNC platform pedal - Image 4
M.2 View CNC platform pedal - Image 5

The CNC pedal of the M-Line series for bikes and e-bikes:

  • Flat aluminum body with 19mm height
  • Tread: CNC-milled hexagonal pins of varying heights, on both sides, for a secure footing
  • Compliant with German Road Traffic Licensing Regulations (StVZO), with narrow reflectors
  • Permissible rider weight: max. 150 kg
  • Available in 3 colors



Availability delayed – new date to follow.

UVP ab 99,95 €

Product description – M.2 View CNC platform pedal

An outstanding feature of the M.2 View CNC is the adapted design of the tread surface: instead of the conventional 3M grip tape, numerous CNC-milled hexagonal pins at different heights ensure excellent grip and a secure footing while riding.
The high-quality, conical axle and bearing units of the M.2 View CNC were specially developed for the M-Line series and offer a robustness that is in no way inferior to that of MTB axles. The pedal is available in a variety of colors, allowing cyclists to customize their bike and express their personal style.



Technical data – M.2 View CNC platform pedal

  • Pedal type : Platform bicycle pedal
  • Pedal body : Aluminum, AL-6061-T6
  • Color, anodized aluminium : gold, iron grey, black
  • Tread : Hexagonal pins, CNC milled on both sides
  • Pedal axle : 9/16 inch thread, chromoly steel
  • Pedal bearing : Industrial ball bearing, plain bearing
  • Weight : approx. 435 g / pair
  • Dimensions (W x H x D) : approx. 102 x 90 x 19 mm
  • Rider weight : max. 150 kg
  • StVZO compliant
