Display holder RL – W

Display holder RL-W for e-Bikelifter
Display holder RL-W for e-Bikelifter
Display holder RL-W for e-Bikelifter

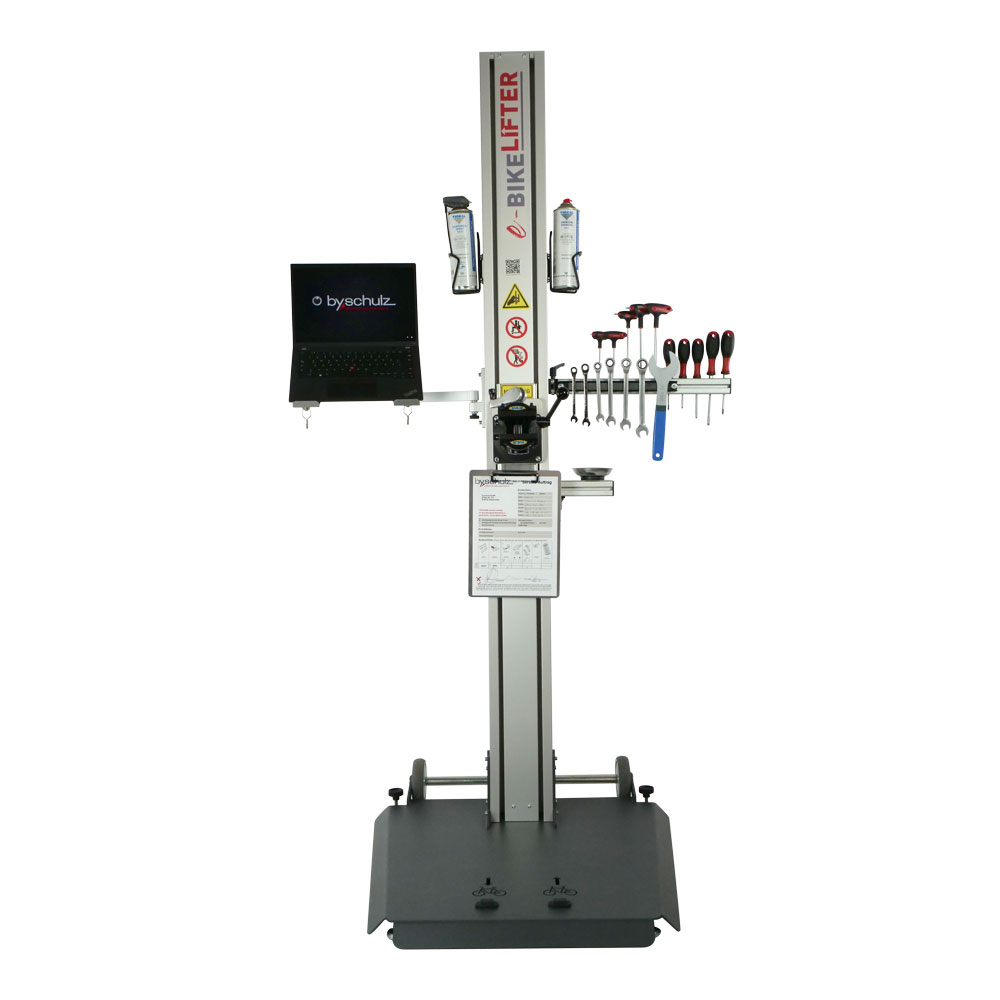

Display holder RL-W for e-bike lifter. e-bike lifter BM-65 with many practical attachments

with angle adjustable swivel arm

  • practical accommodation of tablet, laptop, etc.
  • Can be swiveled 180° in a semicircle
  • Monitor mount can be tilted 140
  • Load capacity: 12kg

UVP ab 99,95 €

Display holder RL-W for e-Bikelifter.

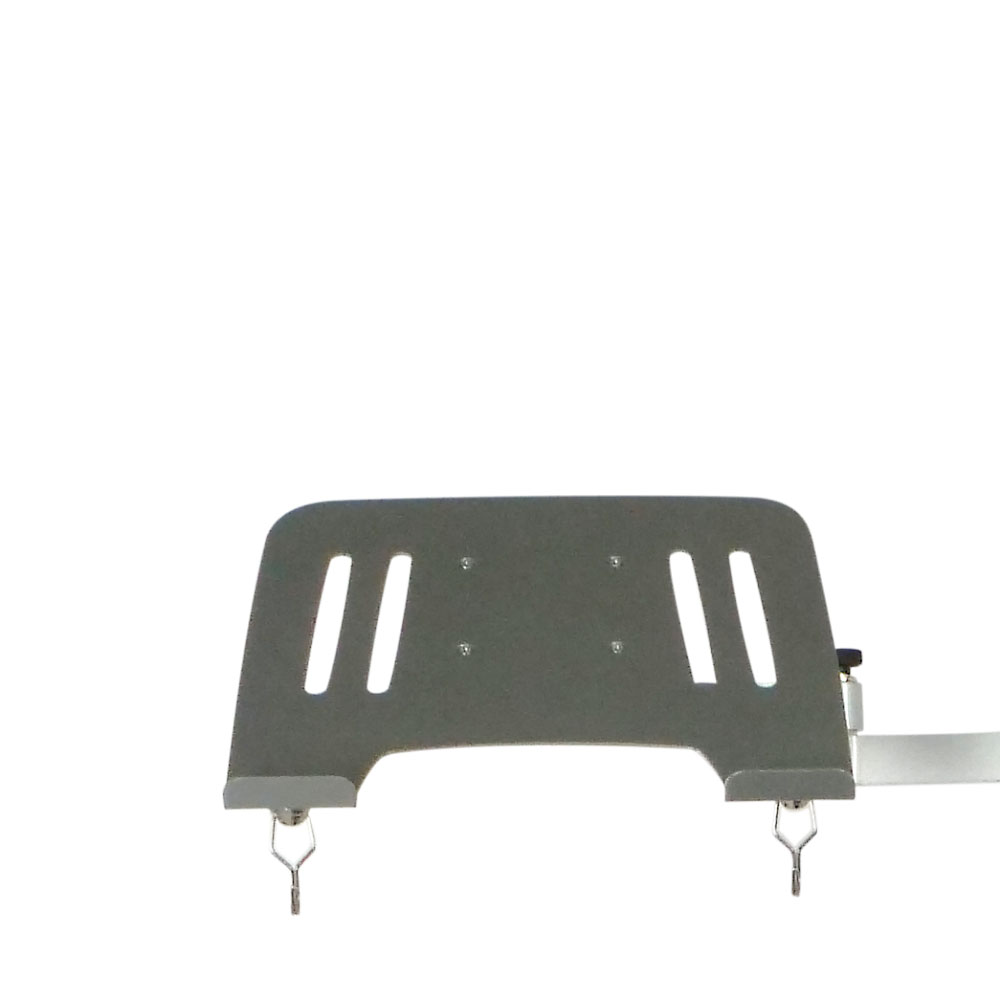

The solid 3-fold horizontally angle-adjustable and vertically swiveling display holder is screwed with two screws and sliding blocks at the desired height to a side of the lifting column of the e-bike lift provided with a longitudinal groove. The swivel arm, equipped with metal joints, can be swiveled 180° in a semicircle without tools, and the holder plate can be tilted 140°.

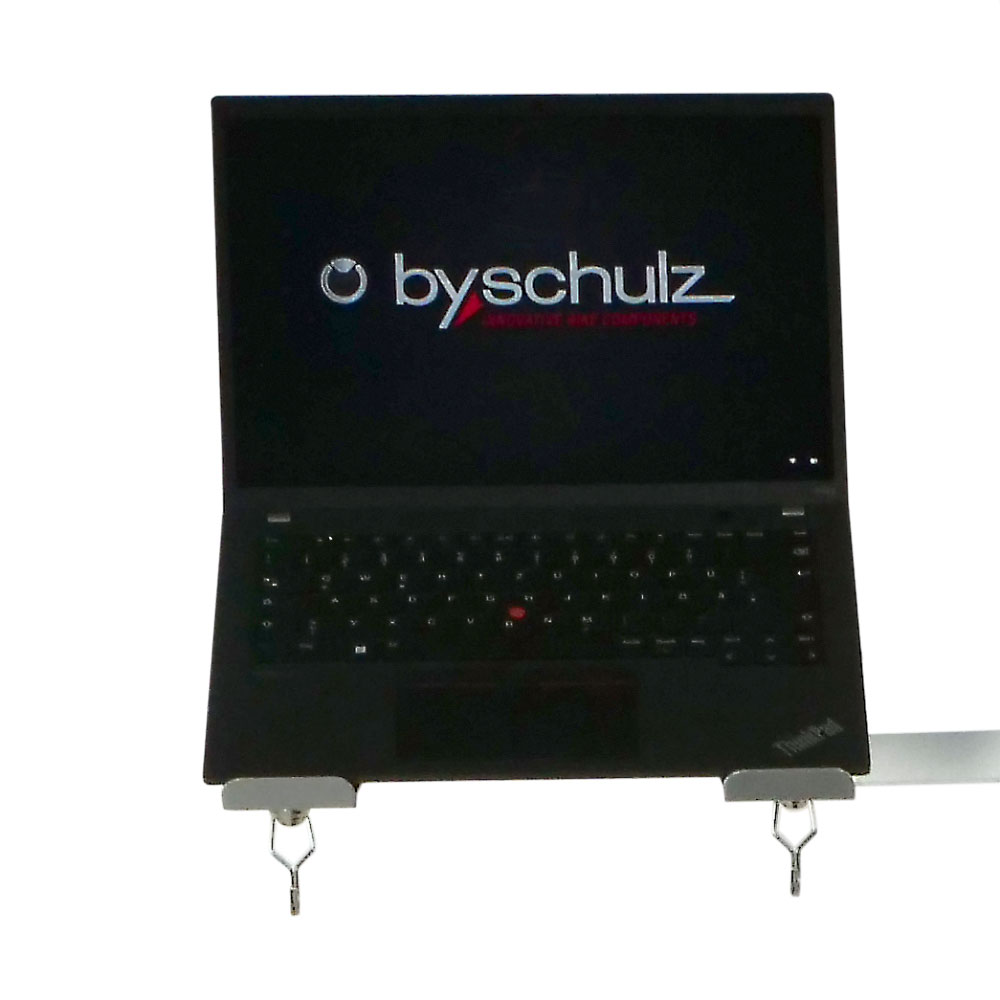

A service laptop or tablet can be placed on the display holder.

This allows software updates and service orders to be carried out and recorded without any problems.

The optional magnetic hooks attached to the underside of the display holder serve as receptacles and attachment points and can be placed individually.

MaterialMain component: Aluminum (3 x axle shank cores made of iron)

Weitere Informationen

Mounting arm: RL = right – left mounting / W = angle-adjustable

  • Can be swiveled 180° in a semicircle without tools
  • TÜV SÜD-tested (Certificate No.: Z1A 18 05 02465 001)

Adapter plate:

  • Mounting plate sheet steel 2.5 x 300 x 255 mm color silver
  • 75 mm hole mount (VESA 75)
  • Security tape and rubber adhesive pads

Ready to install
Tools required for assembly: Allen key 5mm
