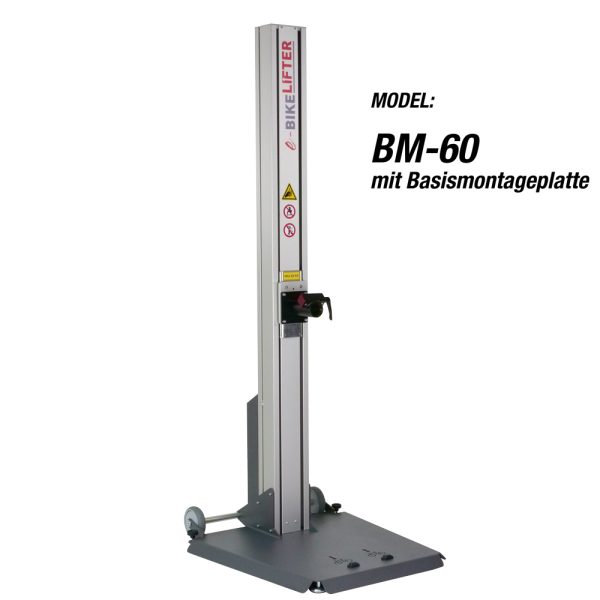

e-Bikelifter BM-60

e-Bikelifter BM-60

Ab 3,795.00 €Ab 4,159.00 €

The mobile workshop mounting stand for e-bikes, cargo bikes and bicycles



MSRP from 3.795 €

· Load capacity : Max. 60 kg (for cargo and e-bikes)

· Mobile use due to integrated transport wheels

· Highly sensitive sensor foot switch / stop system

· Battery operated and wireless

· European production / CE-mark

· Including base mounting plate



For commercial customers and bicycle dealers

If you are interested in a BM-60 mounting stand, you can arrange an order and shipping by phone or e-mail with us personally:
Tel.: +49 (0) 681 – 95 97 25 0
E-mail: info@e-bikelifter.com

Private customers or end users

If you are a bike enthusiast and you are also enthusiastic about the e-Bikelifter, you have the possibility to purchase the product via the official by,schulz online store:

Clear
SKU: N/A Category:

General Information

The e-Bikelifter, which by,schulz developed, is designed for bicycles, e-bikes and cargobikes. The solid rechargeable battery-powered construction is combined with a solid aluminium lifting column and an internal toothed belt drive. The system allows the bike mechanic to work flexibly and comfortably in the service workshop.

Two foot switches integrated in the steel base plate allow easy lift operation by foot. Combined with a sensitive stop system, it enables the mechanic to lift and lower the clamped bicycle steplessly. The base plate is equipped with 4 adjustable feet for leveling.

High-quality transport rollers allow the entire lift to be easily moved by one person, using the lifting column’s rear-mounted handles. The autonomous power supply by the built-in rechargeable batteries. allows a flexible mains-independent operation.

The e-Bikelifter was developed in a successful cooperation of the Danish company Hovmand and the German company by,schulz.
This cooperation resulted in a mobile and sturdy lifting device in workshop quality, which was especially developed for bicycles, e-bikes and cargobikes.
With integrated transport wheels and two built-in, powerful rechargeable batteries, the by,schulz e-Bikelifter offers the flexibility and endurance to work wherever you want. The e-Bikelifter BM-60 can be operated independently of the power grid at any time, without much effort. The maximum lifting capacity is 60 kg, the overall height is approx. 1950 mm. With a width of approx. 780 mm, it even fits through almost any door.

The e-Bikelifter is available with or without clamping arm:

e-Bikelifter BM-60 basic version with base mounting plate.

The basic version, the e-Bikelifter BM-60 does not include a clamping arm. The universal clamping arm mount of the base mounting plate allows the use of many different commercially available clamping arms of the brands Feedback Sports, Park-Tool, VAR and others.

e-Bikelifter BM-60 FB version with clamping arm from Feedback Sports

The version with clamping arm, the e-Bikelifter BM-60-FB comes with Feedback Sports patented Pro Elite Commercial clamping device.

e-Bikelifter BM-60 VA version with clamping arm from VAR

The version with clamping arm, the e-Bikelifter BM-60-VA is delivered with the VAR PR-72000 clamping device.



Technical data

· Overall height : Approx.1950 mm
· Dimensions base plate : Ca. 600 x 900 mm
· System weight : Approx. 60 kg
· Load capacity : Max. 60 kg
· Foot switch in base plate / stop system
· Batteries : 24V / 7,2Ah / external charger
· Charging time : Ca. 4,5h = 80% / 8h = 100%
Fully charged, a 30kg e-bike can be lifted about
be lifted approx. 80 times.
· European production / CE-mark
· Mobile : Integrated transport wheels
· With base mounting plate included



Clamping arms

VAR PR-72000 Clamp





The oversized clamp quickly adjusts to fit any frame tube up to 80mm.
It has excellent frame clamping, thanks to the rubber clamp covers.
The micro-adjustable clamping pressure prevents damage to thin-walled tubes.



Feedback Sports Pro Elite Commercial Clamp

This clamping arm swivels 360° and is suitable for clamping tubes with diameters from 19 to 48 mm. The coated clamping jaws provide a secure grip, and protect components and paint from scratches. Easy operation is provided by a quick ratchet lock with an adjustment screw for fine-tuning the clamping force, and a convenient one-button release. The Feedback Sports clamp is approved for loads up to 39 kg. For more information on this clamp arm, please visit : Feedback Sports

Delivery time

After written receipt of order and order confirmation, the delivery time on stock goods is approx. 10 days.
For repeat orders / pre-orders the delivery time is approx. 8 weeks.

Shipping forwarding

Per piece on pallet / freight Germany-wide 84 € net.
Shipping costs within Europe on request.

Scope of delivery

e-Bikelifter BM-60:
· with charger
· with base mounting plate.
· a clamp is not included in the delivery.

e-Bikelifter BM-60 VA:
· with charger
· with base mounting plate.
· with VAR PR-72000 clamp included.

e-Bikelifter BM-60 FB:
· with charger
· with base mounting plate.
· with Feedback Sports Pro Elite Commercial clamp.

Tech. Data

· Overall height : Approx.1950 mm
· Dimensions base plate : Approx. 600 x 900 mm
· System weight : Approx. 60 kg
· Load capacity : Max. 60 kg
· Foot switch in base plate / stop system
· Batteries : 24V / 7,2Ah / external charger
· Charging time : Approx. 4,5h = 80% / 8h = 100%
Fully charged, a 30kg e-bike can be lifted about
be lifted approx. 80 times.
· European production / CE-mark
· Mobile : Integrated transport wheels
· With base mounting plate included

Manual

The operating instructions for the e-Bikelifter will be available here shortly.

VAR Clamp PR-72000

The oversized clamp can be quickly adapted to any frame tube up to 80 mm.
It has excellent frame clamping, thanks to the rubber clamp covers.
The micro-adjustable clamping pressure prevents damage to thin-walled tubes.

Feedback Sports Pro Elite Commercial Clamp

This clamping arm can be swiveled 360° and is suitable for clamping tubes with diameters from 19 to 48 mm. The coated clamping jaws provide a secure grip, and protect components and paint from scratches. Easy operation is provided by a quick ratchet lock with an adjustment screw for fine-tuning the clamping force, and a convenient one-button release. The Feedback Sports clamp is approved for loads up to 39 kg. More information about this clamp arm at https://support.feedbacksports.com/support/solutions/articles/47001115182-pro-elite-commercial-clamp-user-manual

Video
